Chapter 15:
Unity UI: Integrating Line Breaks and Rich Text Support

Objectives

  • Implement line break handling using the newline character (\n)
  • Apply Rich Text formatting tags in Unity UI Text components
  • Utilize HTML-like tags for text styling (bold, italics, color, size)
  • Integrate Ink story tags with Rich Text formatting
  • Create visually enhanced narrative text using combined formatting techniques

Table of Contents

Integrating Line Breaks

The use of the Ink Story API method Continue() loads up to the next newline character in a story chunk. In programming terminology, this is the character \n.

In the existing code, each new chunk is concatenated as a new line to an internal string value.

// Each loop, check if there is more story to load
while (exampleStory.canContinue)
{
  // Load the next story chunk and return the current text
  string currentTextChunk = exampleStory.Continue();

  // Get any tags loaded in the current story chunk
  List<string> currentTags = exampleStory.currentTags;

  // Create a blank line of dialogue
  string line = "";

  // For each tag in currentTag, set its values to the new variable 'tag'
  foreach (string tag in currentTags)
  {
    // Concatenate the tag and a colon
    line += tag + ": ";
  }

  // Concatenate the current text chunk
  // (This will either have a tag before it or be by itself.)
  line += currentTextChunk;

  // Concatenate the content of 'line' to the existing text
  childText.text += line;

  // ...
}

In the above code, this means that any spaces between story chunks is erased from the output in Unity.

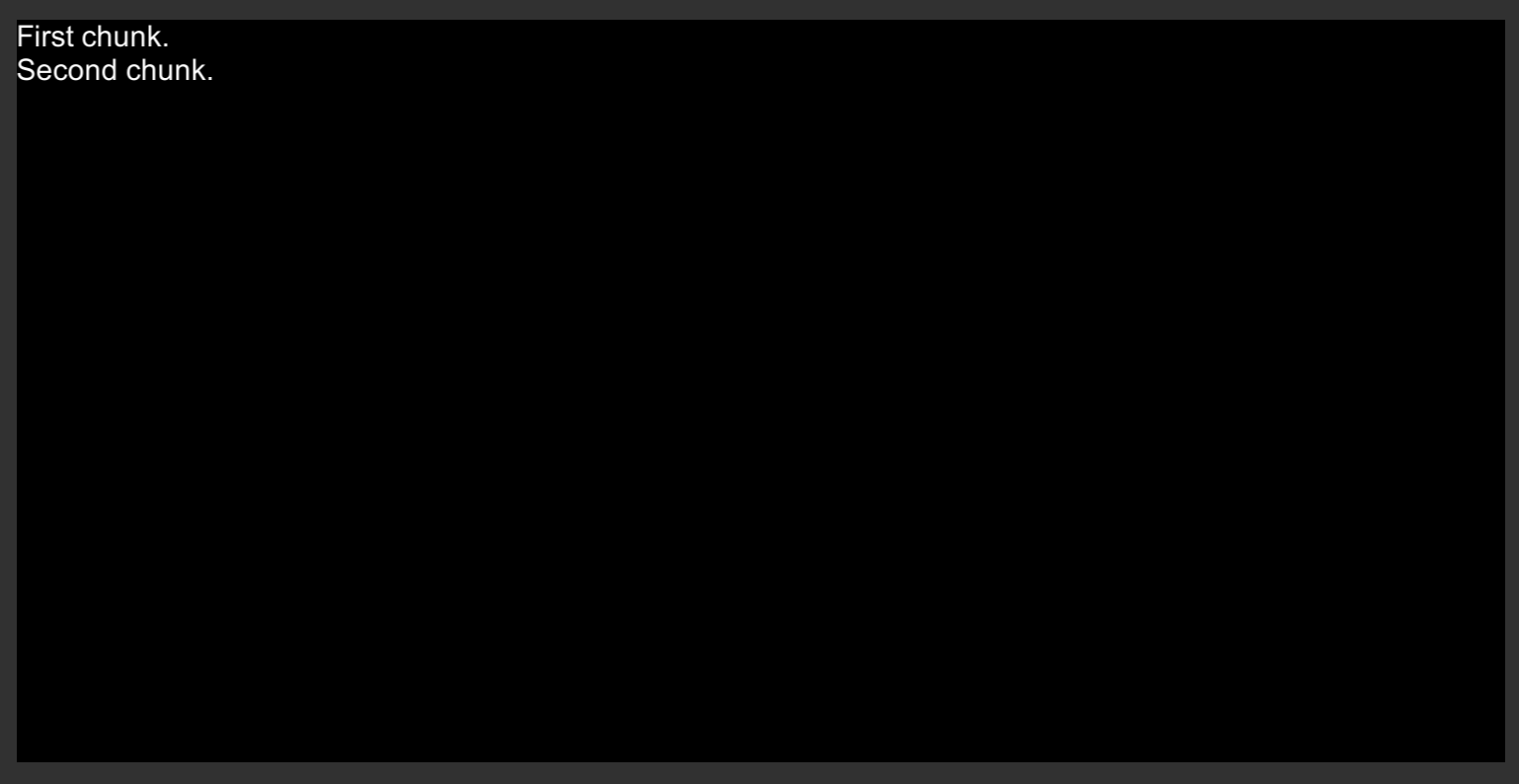

For example, the following Ink code would produce an erased line between story chunks in Unity.

New Ink.ink:

First chunk.

Second chunk.

alt text

To fix this issue, an additional concatenation operation can be added to the following line:

// Concatenate the content of 'line' to the existing text
childText.text += line;

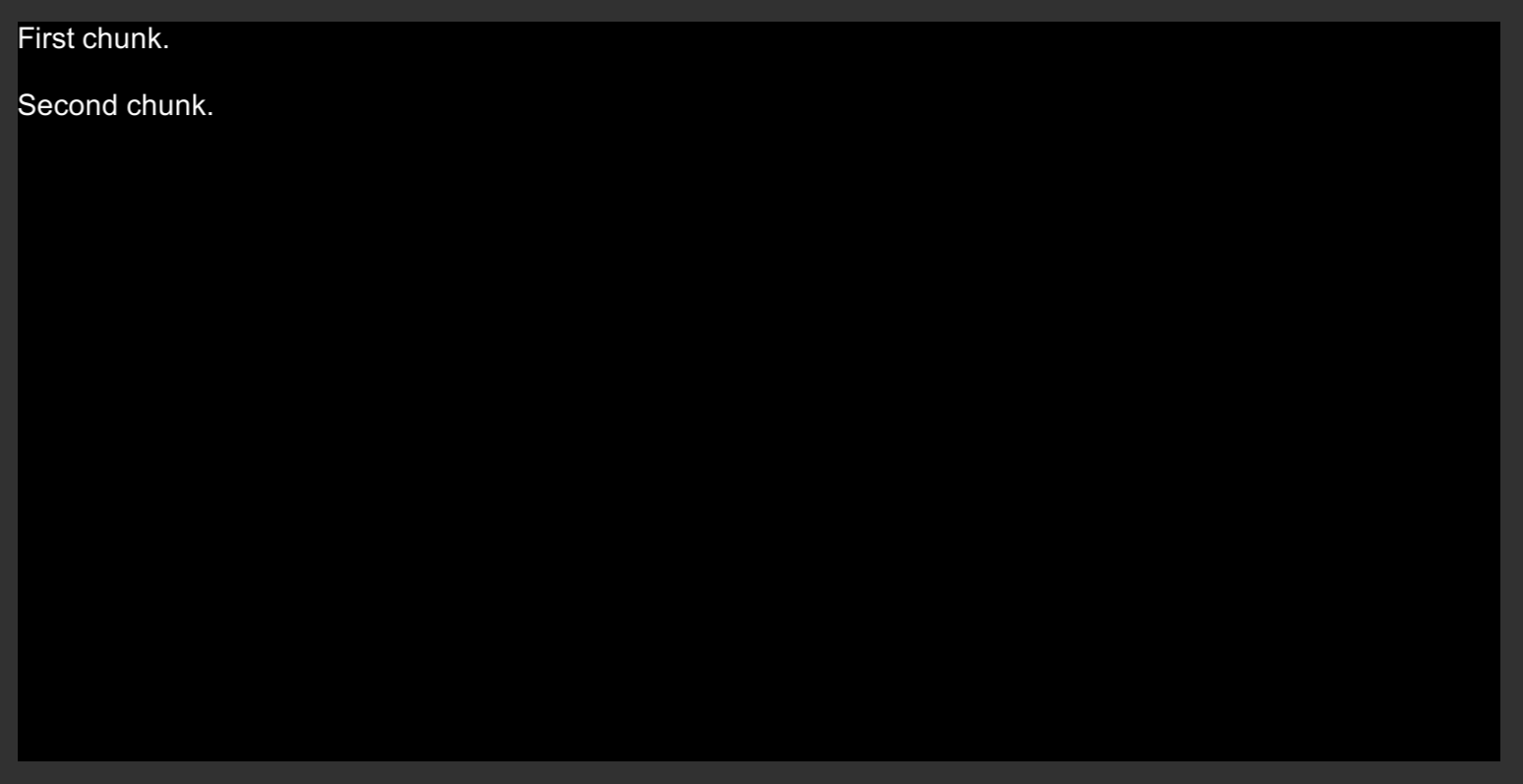

Adding a newline character to the end of the line would fix this issue.

// Concatenate the content of 'line' to the existing text along with the newline character
childText.text += line + '\n';

alt text

Note: Adding newlines does not affect the content of choices. Pressing ENTER will break the content of the choice between itself and the next story content inside of the choice.

Rich Text Support

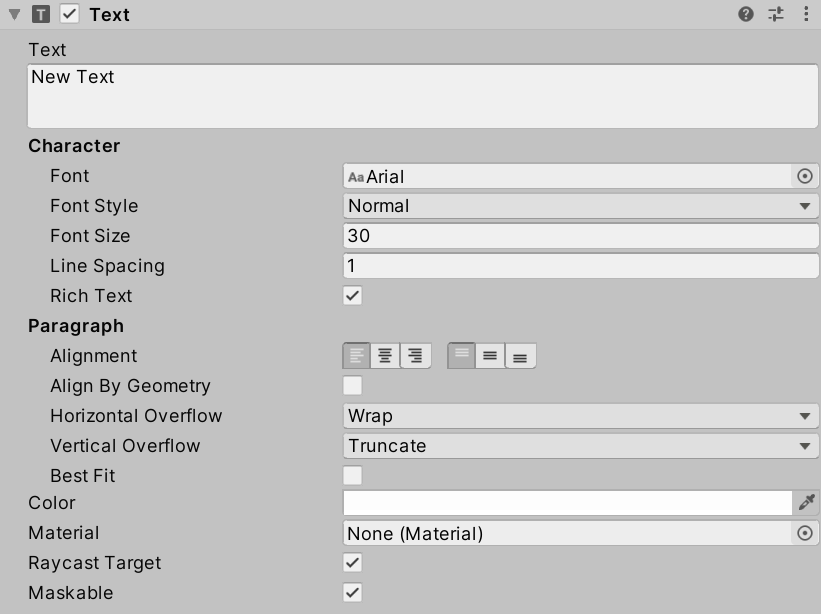

Clicking on a Text GameObject in either the Hierarchy window or as a Prefab will list its components in the Inspector window.

alt text

Among the properties is an option for enabling “Rich Text” support. When enabled, this support adds the ability to use Rich Text as content in a Text GameObject.

In Unity, Rich Text is the ability of Text GameObjects to use markup to format the output of the text when rendered. In other words, additional opening and closing tags (like HTML) can be added to the text. When it is rendered (drawn on the screen), this markup is interpreted and used to influence the style and presentation of the text.

Note: Tags must be closed in Rich Text support.

2025 Note: While Unity UI (uGUI) Rich Text remains functional, TextMeshPro offers significantly more powerful rich text capabilities including:

  • More markup tags (gradient, sprite, link, etc.)
  • Better text quality and rendering
  • Custom styles and style sheets
  • Advanced text effects

For new projects in 2025, consider using TextMeshPro’s rich text system instead. The basic tags shown here (<b>, <i>, <color>, <size>) work in both systems.

HTML in Inky

The editor Inky is built on Electron + Ace. It understands the narrative scripting language Ink and some HTML as well.

Since Rich Text uses markup that is similar to HTML, this means that it can be used in Inky as if it was HTML and in Unity as the Rich Text tags.

Note: As of 2025, Inky continues to support HTML-like markup in its preview. The tags shown here work identically in both Unity UI and TextMeshPro, making them safe for cross-platform rich text formatting.

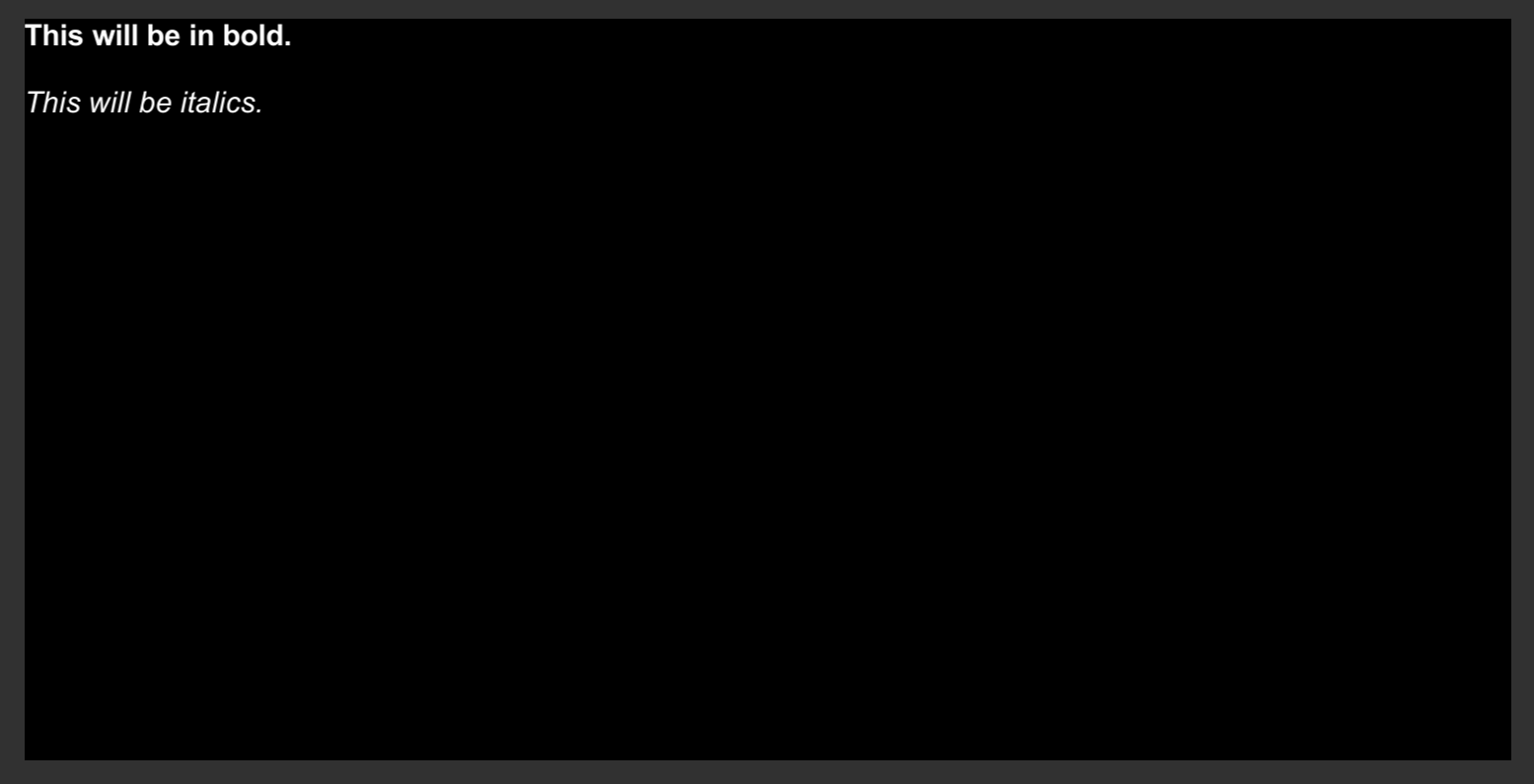

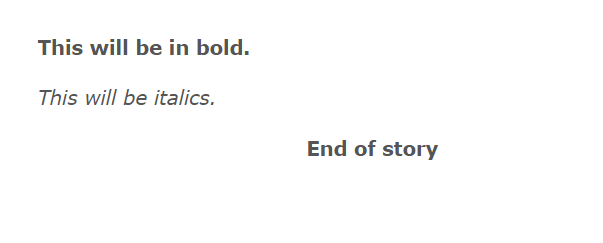

<b>This will be in bold.</b>

<i>This will be italics.</i>

alt text

alt text

Italics

The tag <i> is part of an older version of HTML. However, in Unity, it is supported as part of Rich Text. For both, the effect of using the tag around text content is for it to be italics.

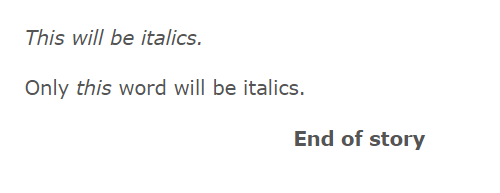

<i>This will be italics.</i>

Only <i>this</i> word will be italics.

alt text

Bold

The tag <b> is part of an older version of HTML. However, in Unity, it is supported as part of Rich Text. For both, the effect of using the tag around text content is for it to be bold.

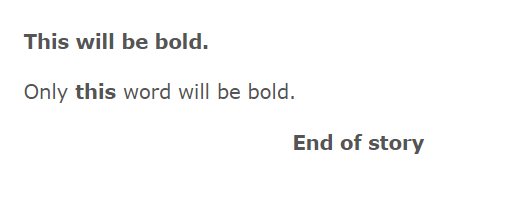

<b>This will be bold.</b>

Only <b>this</b> word will be bold.

alt text
